Détails sur le produit:
Conditions de paiement et expédition:
|
| Model Type: | Cassette Type 1*8 Fiber Optical PLC Splitter | Fiber diameter: | 0.9mm |
|---|---|---|---|
| Cassette color: | Gray or Ivory white | Return Loss (dB): | ≥60 |
| Connector: | SC/APC | Certification: | ISO9001/ISO14001/OHSAS18001/TLC |
| Mettre en évidence: | 1x8 Fiber Optical PLC Splitter,1650nm Fiber Optical PLC Splitter,SC APC PLC Splitter |
||

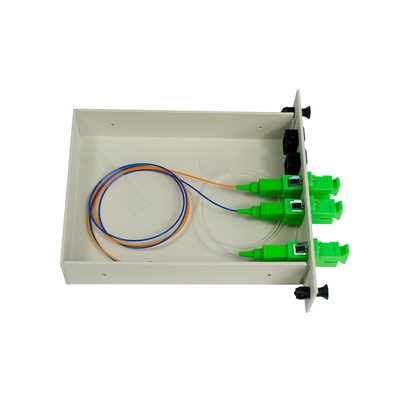

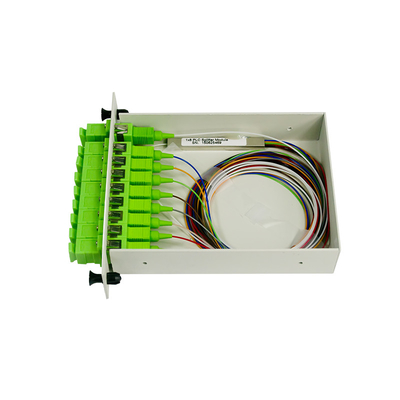

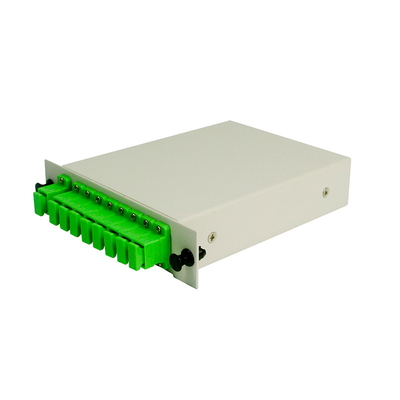

1650nm SC APC Cassette Type 1x8 Fiber Optical PLC Splitter
with SC/APC connectors Cassette Type 1*8 Fiber Optical PLC Splitter
Description:
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Applications:
Optic communication system
LAN
CATV
Test instrument
Fiber optic sensor
Specification:
| Parameter/Type | Nx2(N=1or2) | Nx4(N=1or2) | Nx8(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) |
| Fiber | 9/125 um SMF-28e or customer appoint | |||||
| Operating Wavelength(nm) | 1260~1650(nm) | |||||
| Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB |
| Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB |
| Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB |
| Return Loss | UPC≥50dB APC≥60dB | |||||
| Directivity | ≥55dB | |||||
| Working Temperature(℃) | -40°C to +85°C | |||||
