| Product name:: | Fiber Optic PLC Splitter | Package Type:: | ABS Module |
|---|---|---|---|
| Type:: | FTTH FTTB FTTX Network | Fiber Connector:: | LC/SC/FC |
| Configuration Type:: | 1xN, 2xN | Input/Output Fi: | ber Length: 0.5m/1m/1.5m (default)/2m |
| Mettre en évidence: | 1x32 Fiber Optic Coupler Splitter,1x32 plc Coupler Splitter,Sc Upc plc Coupler Splitter |
||

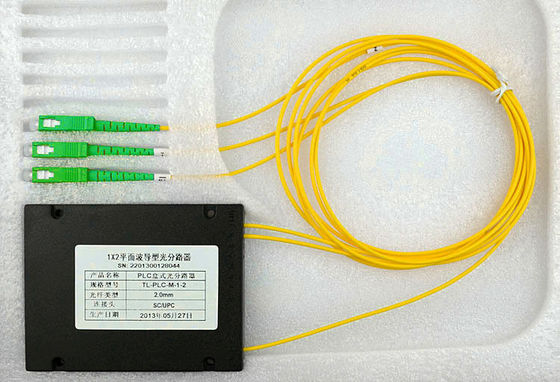

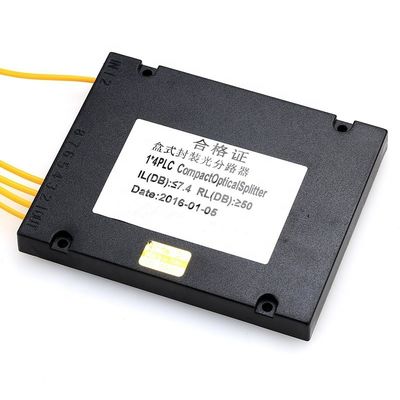

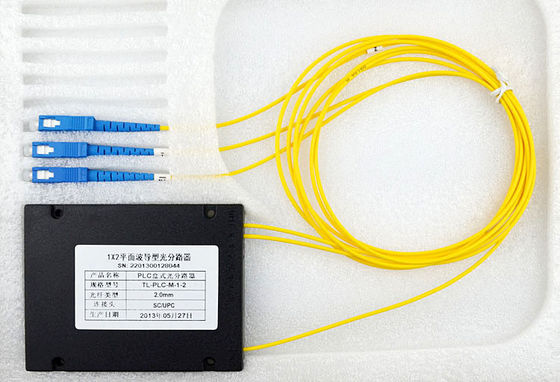

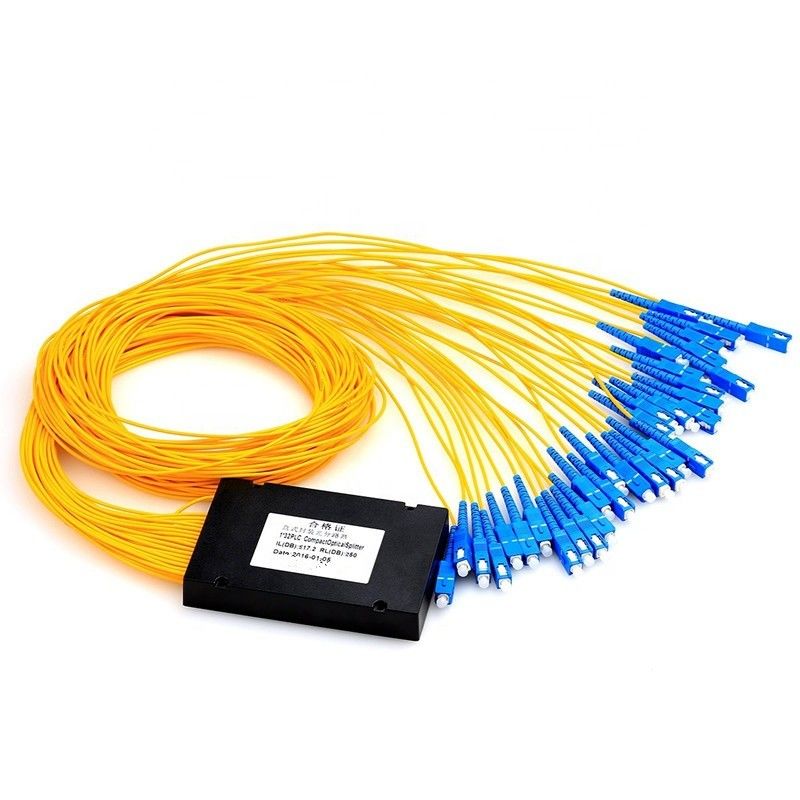

FTTH FTTB PLC Sc Upc 1x32 Fiber Optic Coupler Splitter
fiber Optic 1X8 PLC sc upc fiber optical splitter price 1x8 1x16 sc apc plc passive optical splitter box
Description:
CY COM provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
1,a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 Versions of splitters are available.
2, The length of pigtail can be also customized; usually we will provide you 1m, welcome to contact us for more details.
♦ Low insertion loss
♦ Low PDL
♦ High return loss
♦ Uniform Power Splitting
♦ Compact Design
♦ Wide operating wavelength
♦ Wide operating Temperature
♦ Excellent Environmental & Mechanical Stability
♦ Qualified Under Telcordia GR-1221 and GR-1209
Application
♦ FTTX(FTTP,FTTH,FTTN.FTTC )
♦ Passive Optical Networks(PON)
♦ Local Area Networks(LAN)
♦ CATV systems
♦ Test equipments
Parameters
Type |
1x2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
| Operating wavelength(nm) | 1260-1650 | ||||||
| Insertion loss (dB) | Typical | 3.6 | 7.2 | 10.5 | 13.5 | 17 | 19.5 |
| Maximum | 4 | 7.5 | 11 | 14 | 17.2 | 21 | |
| Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 1 | 1 | 2 |
| Maximum | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 |
| Maximum | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |
| Wavelength dependent loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.3 |
| Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
| Return loss (dB) | Minimum | 55/50 | |||||
| Directivity (dB) | Minimum | 55 | |||||
| Operating temperature (℃) | -20 to 85 | ||||||
| Storage temperature (℃) | -40 to 85 | ||||||
| Optical fiber type | SMF-28 Or customer required | ||||||
| Optical fiber length (m) | 1.2 or customize | ||||||
