| Model No.: | 4/8-CH Compact CWDM Mux/Demux module Mini CWDM | Wavelength: | 1270nm, 1471nm, 1491nm 1611nm or others |
|---|---|---|---|
| Input/Output connector: | FC, SC, LC optional | Product Name: | Mini CCWDM |
| Non-Adjacent Chan: | 45 db | Channel Insertion Loss: | Max 0.70 (Typical 0.50) db |
| Adjacent Channel Isolation: | lation: 30 db | PDL: | 0.10 db |
| Mettre en évidence: | Mini CWDM,Compact CWDM,45 Db 4 CH CWDM |
||
45 Db 4 CH Compact Mini CWDM For Optical Receiver

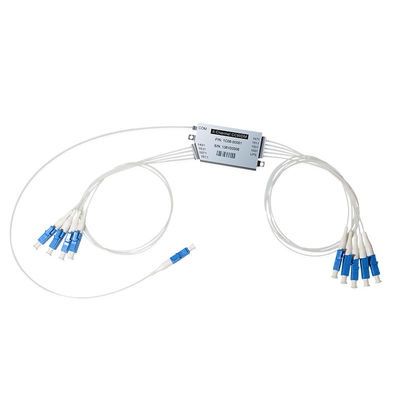

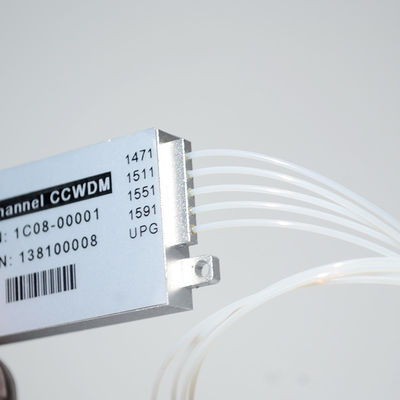

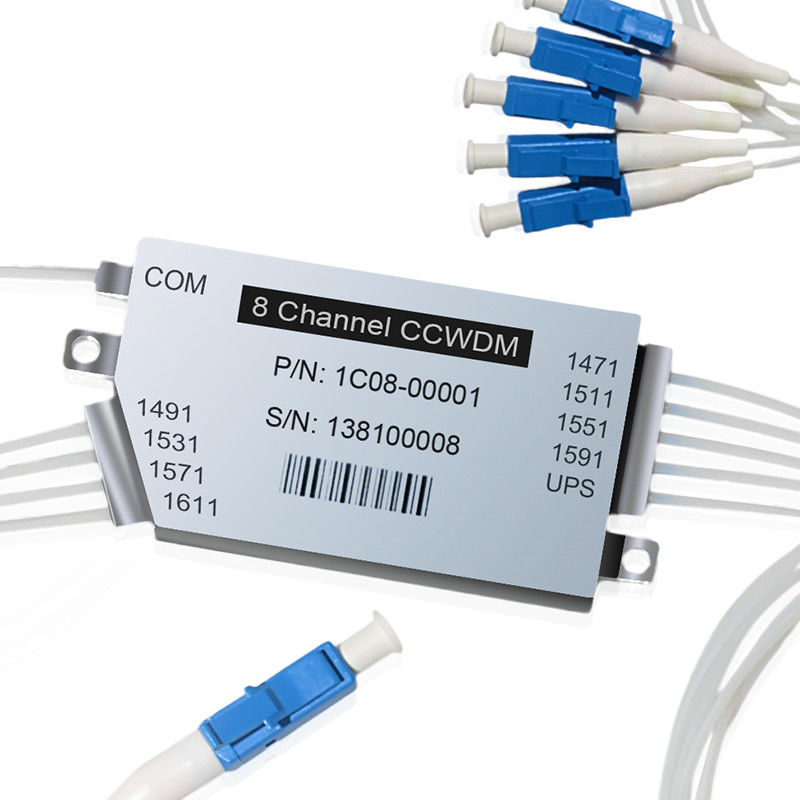

4/8 channel CCWDM 4/8-CH Compact CWDM Mux/Demux module Mini CWDM For Optical Receiver
Description
CY COM 's compact size Coarse Wavelength Division Multiplexers(Mini CWDM, Compact CWDM, CCWDM), are integrated optical modules using CY COM proprietary optical bench platform which can significantly improve optical performance, while also reduce manufacturing cost. Compare to the common standard CWDM module, CY COM Mini CWDM takes much smaller package size. Much space can be saved in the application and meanwhile the performance and parameters are also better.
All CY COM CWDM modules are Telcordia qualified.(Meet TELCORDIA GR-1221-CORE) Coarse Wavelength Division Multiplexing (CWDM) is an excellent choice for increasing bandwidth capacity while keeping costs down. The 6com splice/pigtailed ABS module family, based on standard Thin Film Filter (TFF) technology with a proprietary packaging, offers you smallest component dimensions combined with an outstanding performance and reliability.
Features
1) Low Insertion Loss
2) Excellent Channel Isolation
3) High Stability & Reliability
4) Low Cost
5) Compact size
Applications
CWDM Channels Add/Drop
Specification:
|
Parameters
|
Unit
|
Specifications
|
||||
|
1
|
Operating Wavelength Range
|
nm
|
1260 ~ 1620
|
1520 ~ 1570
|
||
|
2
|
Channel Spacing
|
---
|
20nm
|
100GHz
|
||
|
3
|
Channel Passband (@-0.5dB bandwidth)
|
nm
|
IUT ± 6.5
|
UT ± 0.125
|
||
|
4
|
Channel Quantity
|
---
|
C4CH
|
C8CH
|
C4CH
|
C8CH
|
|
5
|
Max. Pass Band Ripple
|
dB
|
<0.35
|
<0.4
|
||
|
6
|
Max. Channel Insertion Loss
|
dB
|
≤1.8
|
≤3.0
|
≤2.0
|
≤3.2
|
|
7
|
Min. Adjacent Channel Isolation
|
dB
|
>30
|
>25
|
||
|
8
|
Min. Non-Adjacent Channel Isolation
|
dB
|
>45
|
>35
|
||
|
9
|
Min. Express Channel Isolation
|
|
>13
|
>12
|
||
|
10
|
Min. Return Loss
|
dB
|
≥45
|
|||
|
11
|
Max. PDL
|
dB
|
<0.1
|
<0.1
|
<0.20
|
<0.30
|
|
12
|
Insertion Loss Temperature Sensitivity
|
dB/℃
|
<0.005
|
|||
|
13
|
Wavelength Temperature Shifting
|
nm/℃
|
<0.002
|
|||
|
14
|
Max. Power Handling
|
mW
|
300
|
|||
|
15
|
Directivity
|
dB
|
≥50
|
|||
|
16
|
Operation Temperature Range
|
℃
|
-40 to +80
|
|||
|
17
|
Storage Temperature Range
|
℃
|
-40 to +85
|
|||
|
18
|
Fiber Jacket & Fiber Length
|
cm
|
Customize
|
|||
|
19
|
Package Dimensions – 1
|
mm
|
100 * 80 * 10 or Customize
|
|||
|
20
|
Package Dimensions – 2
|
mm
|
LGX Compatible
|
|||
|
21
|
Package Dimensions – 3
|
mm
|
19” 1U Rack Mounted
|
|||
|
22
|
Connector Type
|
--
|
SC/LC/FC or Customize
|
|||
|
23
|
Fiber Type and Jacket Color
|
|
G.652D / G.657 A1 (or Customize)
|
|||
