| Item: | ST Simplex adapter | Cap Color: | Red / Black |
|---|---|---|---|
| Shape: | Round Type | Test: | 100% |
| Materials: | Zinc / Copper alloy | Type: | Simplex or Duplex |
| Fiber type: | Singlemode | Cap Shape: | Round or Square |
| Mettre en évidence: | Simplex Singlemode Fiber Optic Adapter,Singlemode ST Simplex Optic Adapter,Singlemode ST Simplex Fiber Adapter |
||

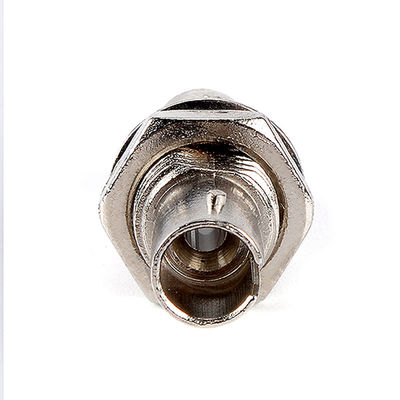

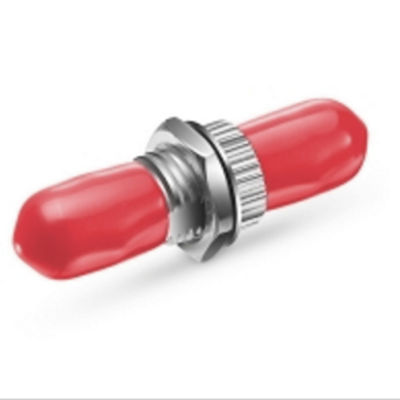

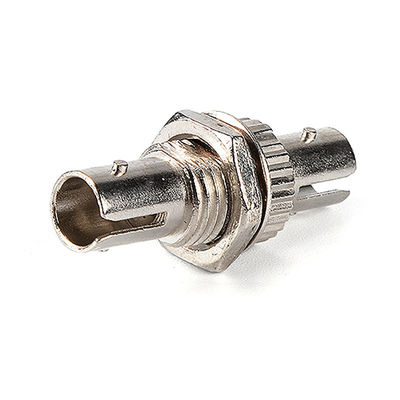

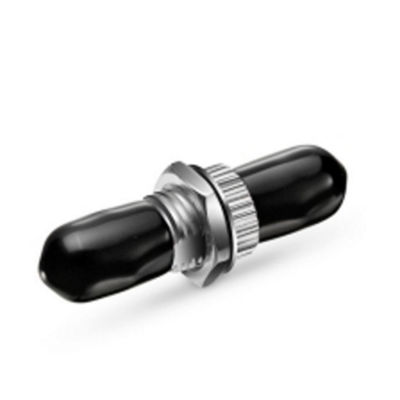

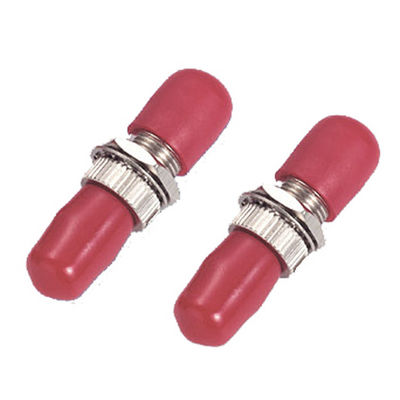

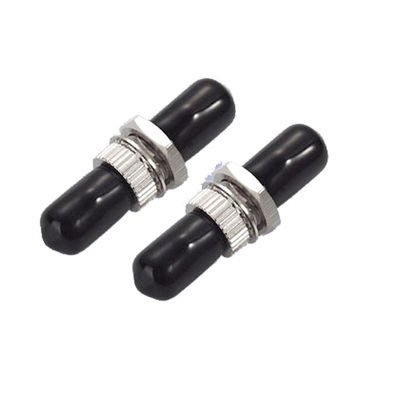

Round Type ST Simplex Singlemode Fiber Optic Adapter
Simplex Singlemode Round Type ST Fiber Optic Adapter / Coupler
Description:
SMA fiber optic adapter (also call SMA optic fiber adapter) is available in single mode UPC and multimode SPC to sastify to connect single mode or multimode patch cable.
ST fiber optic adapters are all threaded type, It's a small device designed to terminate or link the fiber optic cables or fiber optic connectors between a fiber optic lines
Features:
FC mode used matal thread connecting strructure
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
APC,UPC optional
Simplex or Duplex
Application:
Fiber optic communication network
Optical broadband process network
Optical instrumentation network
Telecommunication Networks
Optic Local Area Network
Adapter docking
Equipment Test
CATV System
Specification:
| Operating Performance | Metal Fiber Adapter | |
| PC | APC | |
| Insertion Loss(dB) | <0.2 | <0.2 |
| Durability(500 Mating)(dB) | <0.1 | <0.1 |
| Operation Temperature(°C) | -40 to 80 | -40 to 80 |
| Retention Force(N) | 200-600 | 200-600 |
| Tensile Strength(kgf) | 10 | 10 |
| Housing Material | Zinc / Copper alloy | Zinc / Copper alloy |
| Sleeve Alignment Material | Ceramic(GradeA) | Ceramic(Grade A) |
| Housing Corlor | Black | Red |
Drawing and Pictures:
