| Item: | LC / APC Adapter | Color: | Green |
|---|---|---|---|
| Structure: | Flangeless | Test: | 100% |
| Materials: | FBT+PC | Ferrule material: | Ceramic |
| Cap color: | White | Type: | Simplex |
| Mettre en évidence: | Flangeless Fiber Optic Receptacle,Flangeless LC / APC Adapter,LC / APC Simplex Adapter |
||

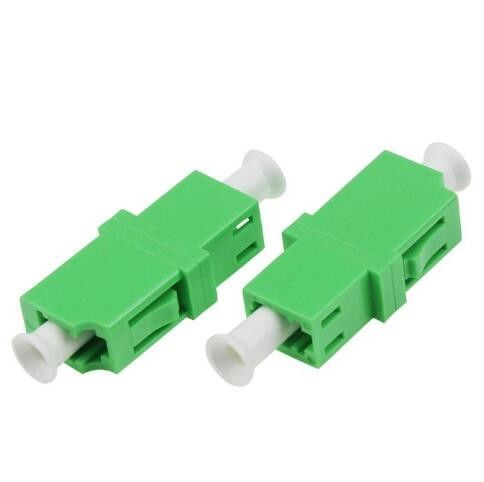

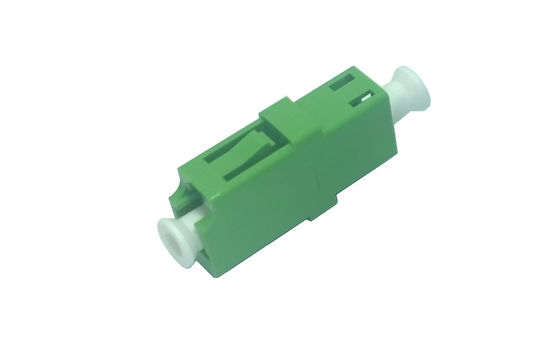

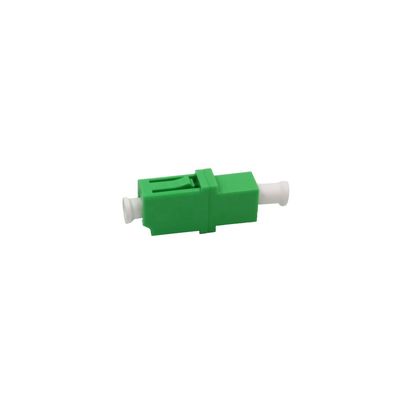

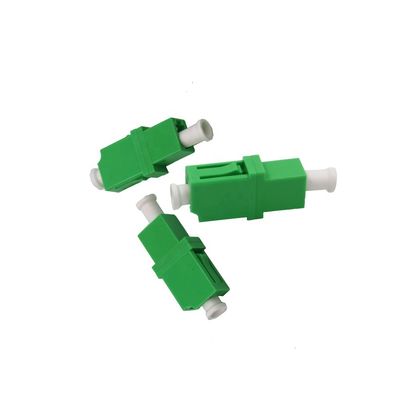

Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle
LC / APC Fiber optical adapter ,Plastic optical fiber coupler, Single mode, Flangeless ,Green color
Description:
LC Adapters were developed by Lucent Technologies. They are composed of a plastic housing with an RJ45 push-pull style clip.
Fiber Adapter (also known as flange, coupling) is a fiber optic connector for connection components, the product is very variety, including FC, SC, ST, LC, MTRJ, as well as carry out the transfer between each other such as: ST-SC, FC-ST, it's widely used in optical distribution frame (ODF), fiber-optic communications equipment, instrumentation, the feature is stable and reliable
Features:
Small size, large capacity
High reliability & stability
Low insertion loss, high return loss
Used to mate two connectors together.
Double the capacity, perfect space saving solution
Push-and-pull bayonet structure, convenient for installation and operation.
Application:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
| Item |
Parameter
|
|
Polish Type
|
PC,UPC,APC
|
|
Fiber Counts
|
Simplex, Duplex
|
|
Applicable Fiber mode
|
SM/MM
|
|
Operation time
|
About 15s (exclude fiber presetting)
|
|
Insert loss
|
≤ 0.3dB
|
|
Return loss |
≥ 45 dB(PC )≥ 50 dB(UPC )
≥ 55 dB(APC ) |
|
Mechanical Durability
|
> 500 Times
|
Pictures and Drawing:
