| Product Name: | 10G SFP bidi module 80km 120km 1000base-fx SFP | Model: | gepon olt sfp |
|---|---|---|---|
| wavelength: | 1270/1330nm | Speed: | 100/1000M,2.5G,4G,8G,10G,40G,100G |
| Data Rate: | 10Gbps | Fiber Interface: | UTP RJ45,LC,SC |
| Mettre en évidence: | 1000base-fx SFP,1000base-fx SFP Optical Transceiver,10Gbps SFP Optical Transceiver |
||

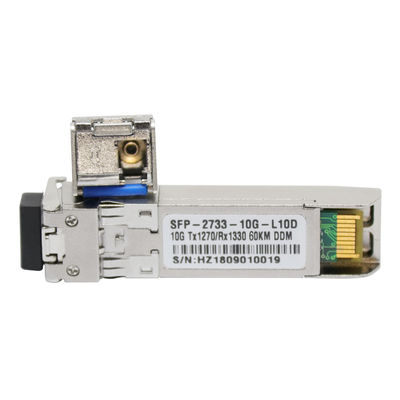

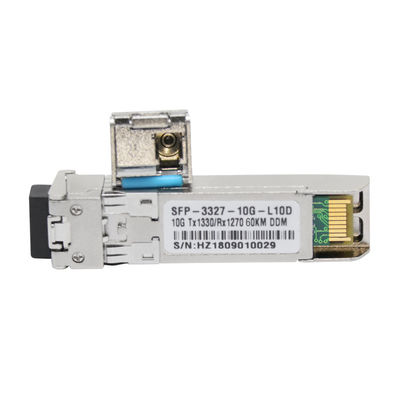

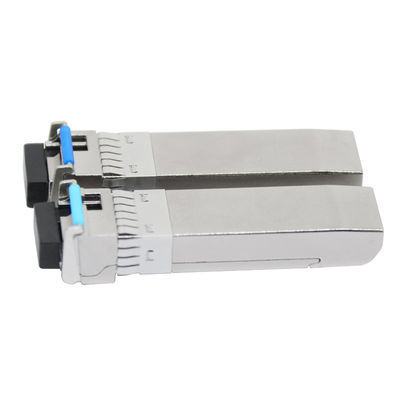

10G SFP bidi module 80km 120km 1000base-fx SFP
Epon Olt SFP 1.25G PX20+ GEPON Olt SFP 20KM
Product Description
SFP module Transceiver 10G BIDI SFP+ transceiver designed to transmit and receive optical data over 10km single mode optical fiber(SMF) with a BOSA including 1330nm DFP Laser and 1270nm PIN receiver. The transceiver comply with SFP+ (Small Form-factor Pluggable Plus) SFF-8431 MSA, and can support Multi-rate from 1Gbps to 11Gbps for 10G Ethernet LAN(10.325Gb/s) and WAN(9.95Gb/s) application. Digital diagnostics functions are available via I2C which is Compliant with SFF-8472.
10G SFP bidi module 80km 120km 1000base-fx SFP
Key Features:
1. Multi-sourced SFP package with dual LC/PC receptacles;
2. Single mode dual fibers transmission
3. Up to 20~80Km with 9/125μm SMF;
4. AC coupled for Rx and Tx side
5. Two temperature ranges: 0°C to +70°C for commercial level, -40°C to +85°C for industrial level;
6. operates at data rate 1.25Gbps;
7. Complies with MIL-STD-883/GR-468
8. Complies with lots of brands of switch such as cisco h3c…….
9. Can be with or without DDM
Specification:
|
Supports 9.95 to 11.3Gb/s bit rates |
|
Hot-Pluggable |
|
Duplex LC connector |
|
1310nm DFB transmitter, PIN photo-detector |
|
SMF links up to 10km |
|
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface |
|
Power Supply :+3.3V |
|
Power consumption<1.5W |
|
Temperature Range: 0~ 70°C |
|
RoHS compliant |
