Détails sur le produit:
Conditions de paiement et expédition:
|
| Length: | 1m or customized | Cable color: | Colors |
|---|---|---|---|
| Connector: | SC,FC,LC | Cable diameter: | 0.9mm/2.0mm/3.0mm |
| Insertion loss: | IL<0.2db | Fiber type: | G652D/G657A1/G657A2 etc. |
| Fiber Count: | 12 Fiber | Polish Type: | APC UPC |

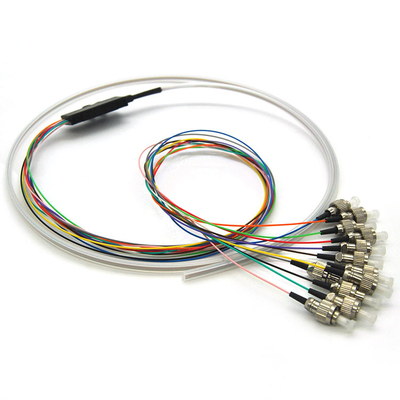

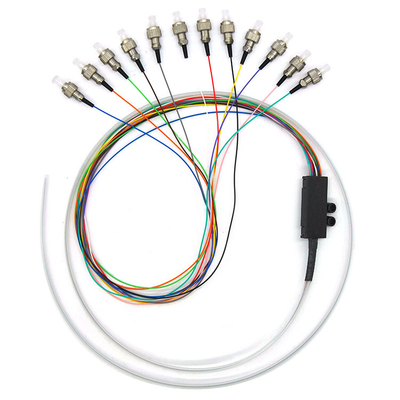

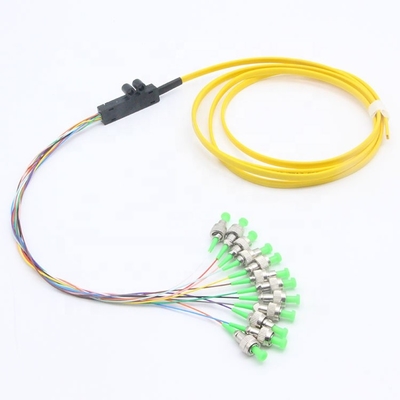

| Mettre en évidence: | single mode fiber pigtails,Fan Out fiber pigtails,ST Ribbon fiber pigtails |
||
Connect with outside cables and trays inside racks
Small factor design minimizes storage space
Choice for 12 cores ,24 cores and Multi-cores
Comply with Telcordia GR-326-CORE , IEC Standard
Parameters
| Fiber count | 12 | Fiber Mode | 9/125μm |
| Connector Type1 | FC/APC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 0.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
