| Product name: | Fiber patch cord | Cable color: | orange |
|---|---|---|---|
| length: | 1m,2m,3m or customized | Cable Dimension: | 0.9mm, 2.0mm,3.0mm |
| Connector: | LC to SC | Model: | Multimode |
| wavelength:: | 1310nm or 1550nm | Cable type: | G652D, G657A1,G657B3, OM4, OM1 |
| Mettre en évidence: | LSZH Fiber Optic Patch Cords,LSZH lc to sc fiber patch cable,OM1 LSZH Patch Cord |
||
OM1 62.5/125 LC To SC Duplex LSZH Fiber Optic Patch Cords
Fiber Optic Patch Cord is important of optical network.They have same or different connectors which are installed on the end of fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
1. Price-Competitive
2. Low Insertion Loss & PDL
3. Factory-terminated and Tested
4. Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber
5. Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
6. Polishing Options:PC/UPC/APC
7. Feature Connector with Ceramic Ferrules
Specifications:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652d/G.657a1) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Loss (dB) | ≤0.25dB | ≤0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
| Return Loss (dB) | ≥50dB(PC/UPC) | ≥40dB(PC/UPC) |
| TIA/EIA-455-107 | ≥60dB(APC) | |
| Exchange-ability | ≤0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patch cord | |
| Operating Temperature (℃) | -10 ~ +70 | |
| Storage Temperature (℃) | -40 ~ +85 | |
| Package | 1 pieces/bag | |
| All values specified are with connectors | ||
(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.
(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,
2；IPQC inspects the production line to ensure that the production meets the quality requirements.
3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements
(3) Optical Test. Our products comply with IEC and ITU standards
(4) At least 30% spot test by Quality Assurance Department after the products finished.

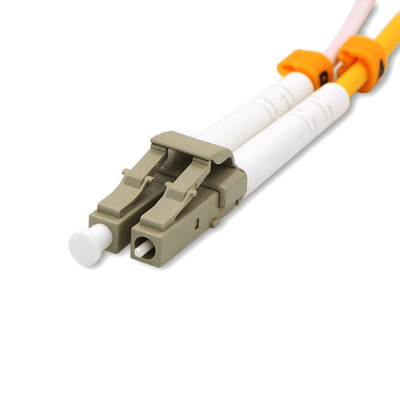

Product picture
