| Product name: | Amored patch cord | Cable color: | Blue |
|---|---|---|---|
| length: | 1m,2m,3m 100m or customized | Cable Dimension: | 0.9mm, 2.0mm,3.0mm |
| Connector: | LC SC FC ST | Model: | MultiMode |
| wavelength:: | 1310nm or 1550nm | Cable type: | G652D, G657A1,G657A,G657B3 |
| Mettre en évidence: | Multimode Armored Patch Cord,2.0MM Armored Patch Cord,1550nm Simplex Armored Patch Cord |
||
1550nm Simplex FC 2.0MM Multimode Armored Patch Cord
FTTH Armored Fiber Optic Patch Cord, LSZH Jacket
Fiber Optic patch cord is a fiber optic cable used to attach one device to another for signal routing. It includes LC/SC/ST/FC/MTP/MU/MPO connectors, the length and the fiber count can be customized.
Characteristics
Application
Optical performance:
| Test Item | Test Condition | Value(dB) | ||
| UPC | APC | |||
| Optical Performance | Insertion Loss | 1310nm LED light source | <0.3 | <0.3 |
| Return Loss | 1310nm LED light source | >50 | >60 | |
| Environmental Performance (Max. Insertion Loss change) | High temperature | +85°C168 hours | <0.2 | |
| Temperature Cycle | -40-+75°C, 21 Cycles 168 hours | <0.2 | ||
| Humidity Aging | +75°C, 95%R.H,168 hours | <0.2 | ||
| Humidity/Condensation Cycling | -10°C-+65°C, 90%~100%RH, 14 cycles 168 hours | <0.2 | ||
| Mechanical Performance ( Max. Insertion Loss change) | Vibration | 10-55Hz, 1.5mm(p-p) | <0.2 | |
| Flex | 0.9kg,-90o~+90o repeat for 100 cycles | <0.2 | ||
| Torsion | 1.35kg,90o~+90o ,10times | <0.2 | ||
| Withstand tensile | 90N,10min | <0.2 | ||
| Drop | H=1.5M,Total of 8 drops | <0.2 | ||
| Exchangeability | Randomly | <0.2 | ||
| Durability | 500 times | <0.2 | ||
(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.
(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,
2；IPQC inspects the production line to ensure that the production meets the quality requirements.
3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements
(3) Optical Test. Our products comply with IEC and ITU standards
(4) At least 30% spot test by Quality Assurance Department after the products finished.

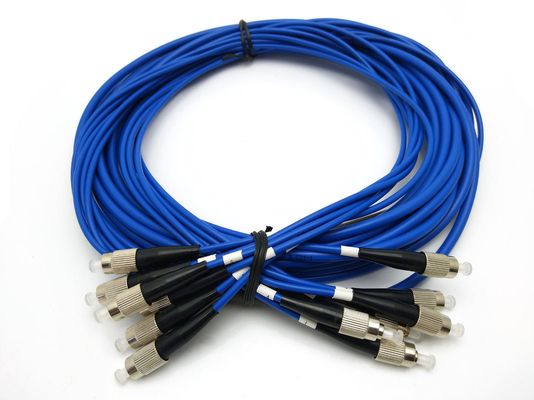

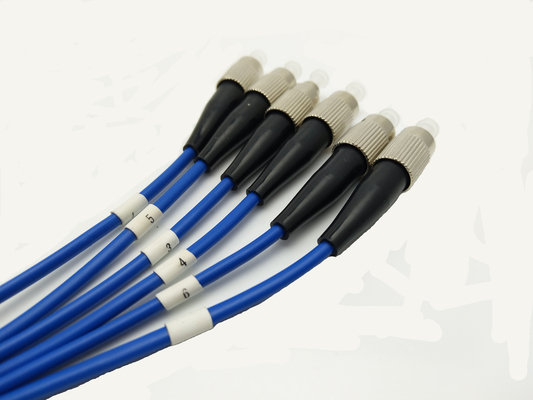

Product picture
