| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| MPO Connector: | Female / Male | Cable color: | 12 Color |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | G652D / G657A / G657B |
| LC Connector Type: | APC / UPC | Cable diameter: | 0.9mm |
| Mettre en évidence: | SM MPO MTP Patch Cord,G657B MPO MTP,G657A MPO MTP |
||

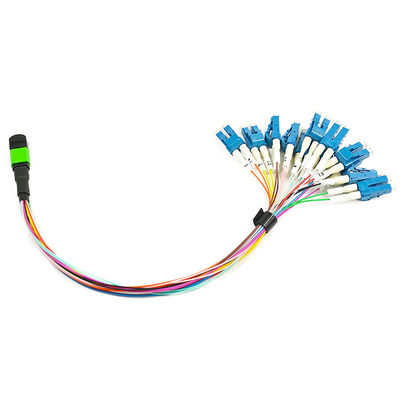

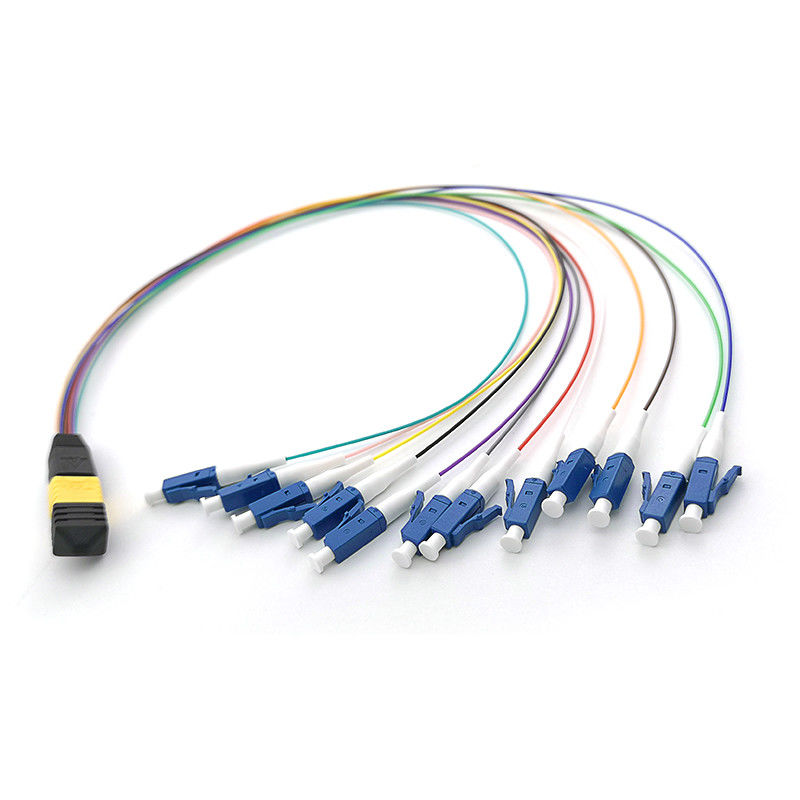

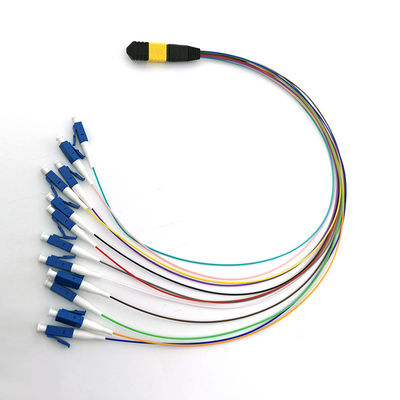

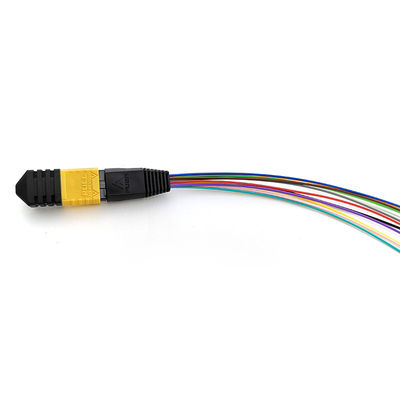

G657A G657B Fan Out SM MPO MTP Patch Cord
Singlemode MPO-12 LC APC UPC 0.9mm cable MPO MTP Fan-out SM Patch Cord 12 Fiber corlor
Description:
MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.
Features:
small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.
Applications:
Video transmission , Data transmission
Specification:
| Connector Type | Fiber MPO/MTP (non-pinned) |
| Ferrule of end-face | UPC(MM); APC(SM) |
| Housing Color | MM (Beige), MM Elite (Aqua), SM (Yellow/Green) |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(500 Matings) | < 0.2dB |
Fiber Cable
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 12, 24, 48, 72, 96, 144 cores |
| Cable Outer diameter | 12cores:4.5±0.2mm ; 24cores:5.4±0.2mm |
| Outer jacket Color | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | 500N |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -40 ~ +70°C |
