| Model Number:: | 40Gbps QSFP+ to 4*SFP+ Active Optical Cable 10M QSFP 4SF | Data transfer rate:: | 40Gbps |
|---|---|---|---|
| Function:: | compatible with all brands | Wavelength:: | 850nm |
| Length:: | 10M.......Customized | Temp:: | 0℃ to +70℃ |
| Mettre en évidence: | 40g Aoc Cable,Q4SFP AOC,Multi Mode 40g Aoc |
||

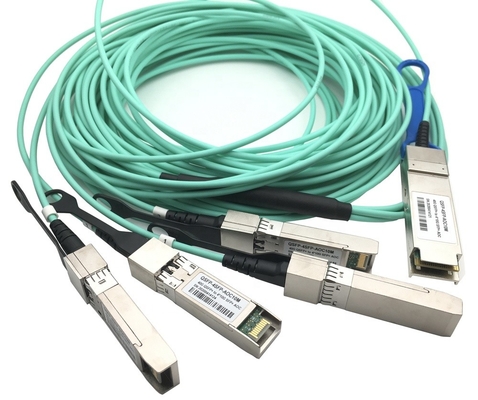

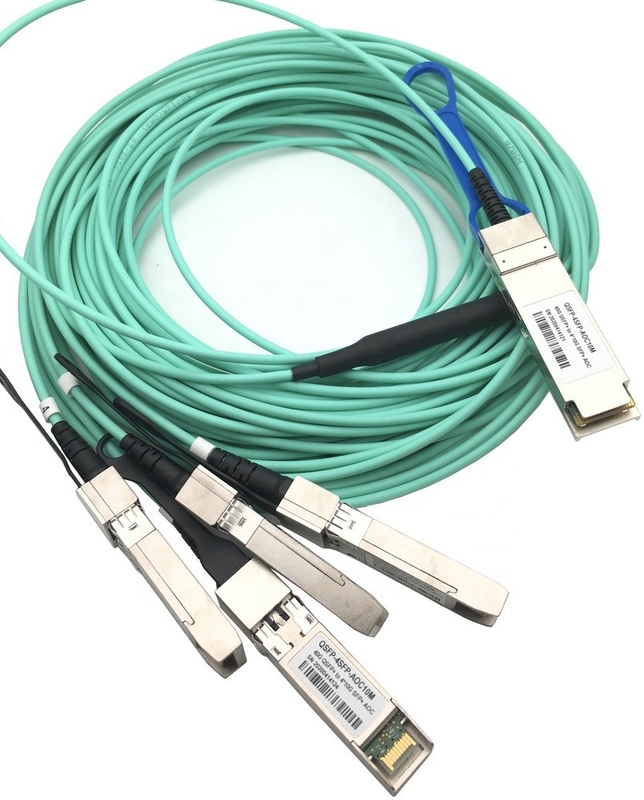

Super Speed Multi Mode Q4SFP AOC 40g Aoc Cable
40Gbps QSFP+ to 4*SFP+ Active Optical Cable 10M QSFP 4SFP AOC
Description
Q4SFP-AOC series are active optical cables (AOC) that allows bi-directional 40Gbps to 10Gbps transmission suitable for high performance computing(HPC)clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.
Applications
Low-latency and high-speed interconnections for high performance computing(HPC)
40G Ethernet SR4
Other high-throughput data transmission network
Storage area Network(SAN)
Features
QSFP+ to 4*SFP+ module
QSFP+ Maximum Aggregate Data Rate 40Gbps
4*SFP+ Maximum Aggregate Data Rate 4*10Gbps
QDR,DDR,SDR(Infiniband)
Bi-directional pararell link
10Gb/s per lane,X4 channels
Up to 100m
Low profile connectors
Low power consumption
Bundle multi-mode fiber array
850nm VCSEL four array
PIN diode four array
Hot-Pluggable
I2C management interface
From 0 to 70 degree case temperature
3.3V power supply voltage
Electrical 38-pin connector
